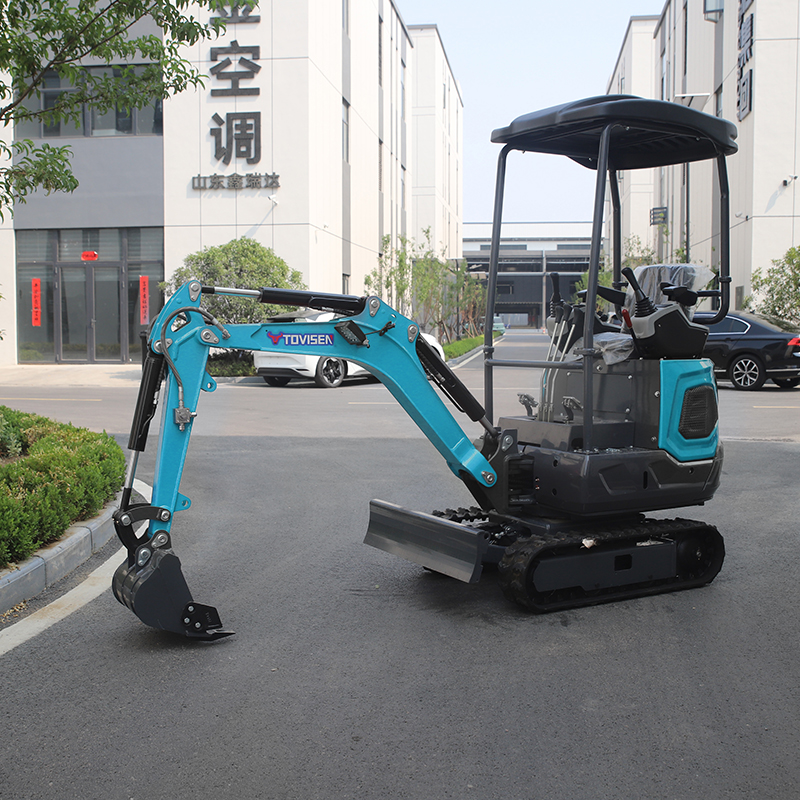

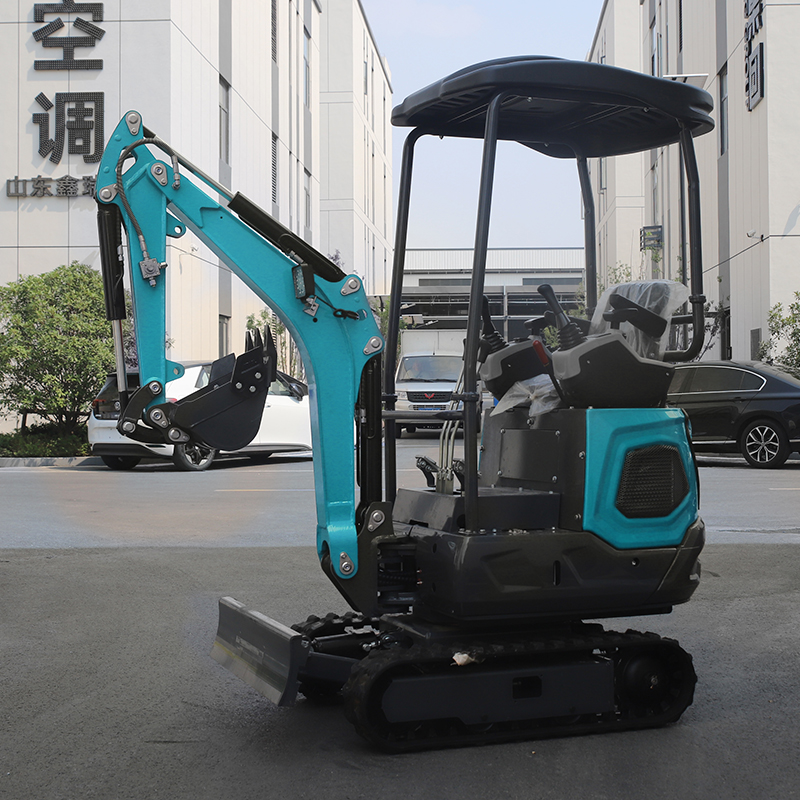

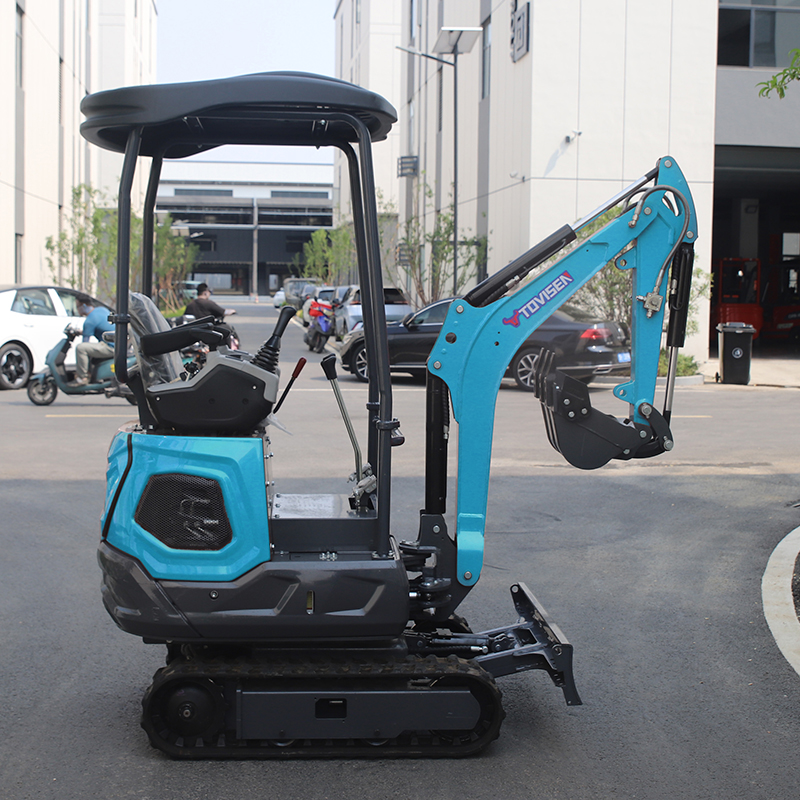

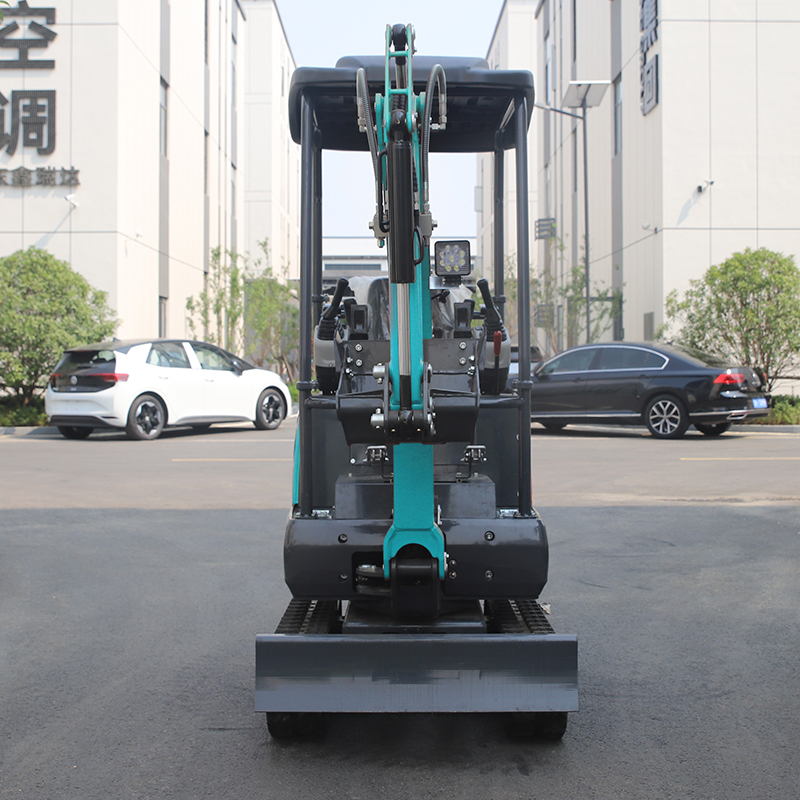

China mini excavator TC-15Q

15Q Mini Excavator: Compact, Flexible and Multi - Functional

The 15Q Mini Excavator is a perfect compact solution for a variety of small - scale construction and maintenance tasks.    With its ingenious design and reliable performance, it can efficiently operate in limited spaces, bringing high productivity and dependability.

[Insert the image of 15Q Mini Excavator here]

Key Features of the 15Q Mini Excavator

1. Powerful and Certified Engine

   Equipped with an imported KUBOTA D722 engine. It has mounted oil cylinders and oil pipes with built - in NOK sealing ring/twin gear pump.        This ensures stable power output and efficient operation, and meets EPA, OUER5，CE and other relevant environmental and safety certifications.

2. User - Friendly Design Elements

• Mounted Safety Lock

  The Mounted Safety Lock provides an extra layer of safety during operation.

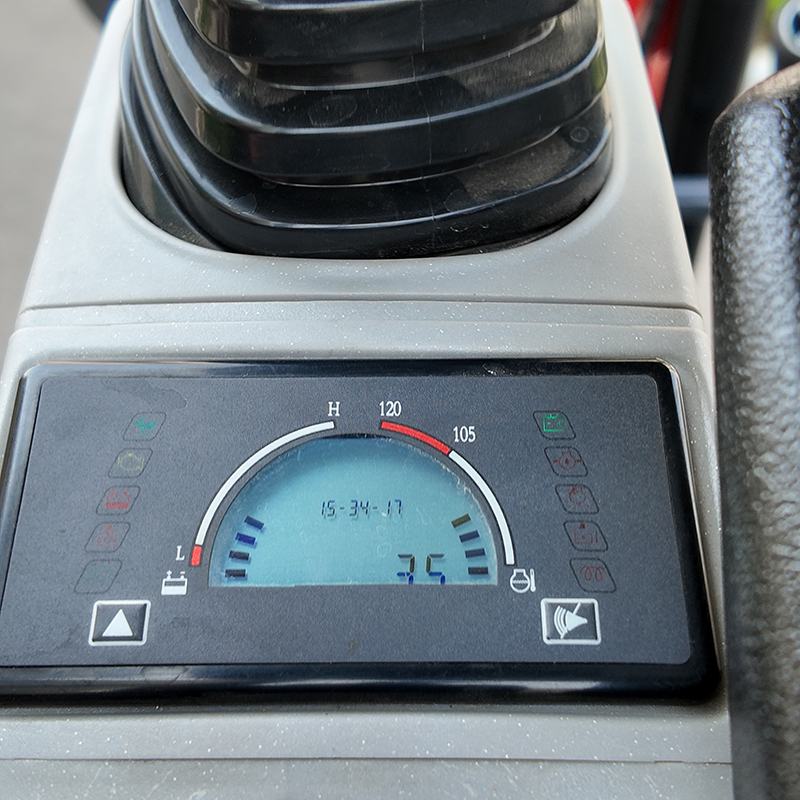

• LED LCD

  The LED LCD allows the operator to clearly monitor the machine's status.



• Foot - operated Crusher

  The Foot - operated Crusher enables convenient crushing operations.

• Steel Tracks Option

  Steel tracks can be additionally installed as an option. The Mounted Safety Lock ensures safety during operation.

3. Compact and Capable Dimensions

   These compact dimensions make it very suitable for narrow work spaces.

• Total length: 2891mm

• Total width: 930 - 1150mm

• Total height: 2247mm

• Max. digging radius: 3097mm

• Max. digging depth: 1717mm

• Max. digging height: 2711mm

• Counterweight ground clearance: 1866mm

• Max. digging force: 8kN

4. Durable Construction

   Adopting high - quality materials and advanced manufacturing processes. For example, the wear - resistant engineering rubber track ensures a long service life even in harsh working conditions.

5. Convenient Operation and Maintenance

   The adjustable driving seat provides a comfortable operating experience. Maintenance is relatively convenient, reducing downtime.

[Insert the images of key features like Mounted Safety Lock, LED LCD etc. here]

Why Choose the 15Q Mini Excavator?

1. Versatility

   Suitable for a wide range of applications, including indoor renovation, toilet upgrading, engineering forcible entry,excavating barren hills, small earthwork, municipal engineering, breaking concrete, river channel cleaning and other working environments.It can perform functions such as excavation, breaking, ditch cleaning, drilling, etc.

2. Compact Design Advantage

   Ideal for confined working environments. Its small size allows it to enter and operate in spaces that larger machines cannot reach while still maintaining good working performance.

3. Eco - Friendly and Certified

• Compliant with relevant environmental protection and safety standards such as EPA and CE.

• The use of energy - efficient components and environmentally friendly materials minimizes the impact on the environment.

4. Durability and Reliability

   Built with high - quality materials and excellent engineering design, it can withstand the test of various tough working conditions,ensuring a long service life and stable operation.

5. Cost - Effective Operation

   The fuel - efficient design and relatively simple maintenance requirements help to reduce operating costs, including fuel costs and maintenance expenses.

Technical Specifications at a Glance

• Engine brand: KOOP/B&S

• Engine model: 192FXP/13.5HP

• Walking speed: 0 - 4km/h

• Climbing angle: 30°

• Operating weight: 1200kg

• Bucket capacity: Standard bucket (optional configurations include Hammer, Ripper, Log grapple, Rake, Auger drill, Large bucket, Mud bucket, etc.)

Upgrade Your Projects with the 15Q Mini Excavator

The 15Q combines compact design, superior performance and durability to deliver excellent results. Whether you are engaged in indoor renovation,    small - scale earthwork, garden maintenance or river channel cleaning, this mini excavator is your reliable partner for tough jobs.

Contact us today to learn more or request a quote!
