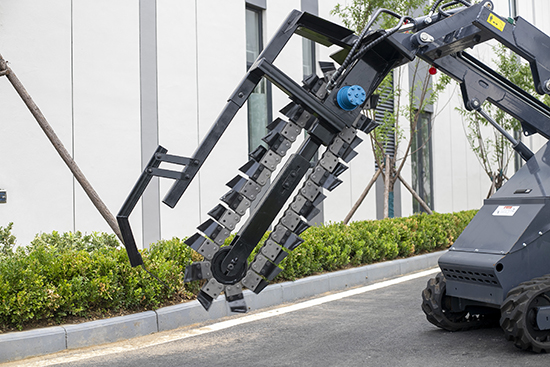

Do you know the furrow opener of a small - sized skid - steer loader?

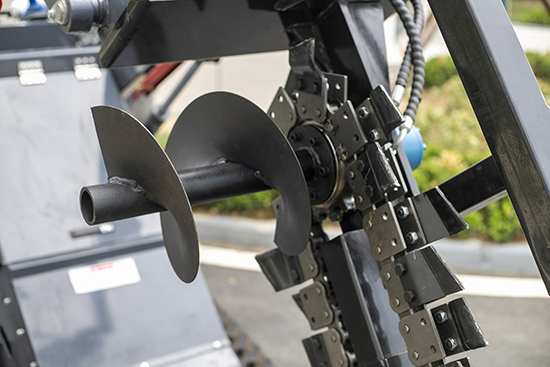

Cutting Tool Part: Usually made of high - strength alloy steel, the shape and size of the cutting tools vary according to different ditching requirements. Common ones include spiral - shaped cutting tools. When rotating, these tools can efficiently cut soil and carry the soil out of the ditch. There are also toothed cutting tools, which are suitable for excavating hard soil or strata containing stones. They can break the soil through the powerful penetration of the teeth.

Transmission Mechanism: Connects the power output shaft of the small skid - steer loader to the cutting tools of the ditching device and is responsible for transmitting the power of the loader to the cutting tools to make them rotate at a high speed. Generally, chain or gear transmission is used. Chain transmission has a certain flexibility and can adapt to a certain degree of vibration and impact; gear transmission has high transmission efficiency and good stability, ensuring that the cutting tools obtain a stable rotation speed.

Frame: Used to support and fix all components of the ditching device, making it an integral whole and reliably connecting with the working device of the small skid - steer loader. The frame is usually welded from sturdy steel and has sufficient strength and rigidity to withstand various forces generated during the ditching operation.

When the ditching device of a small skid - steer loader is working, the engine of the loader outputs power, which is transmitted to the transmission mechanism of the ditching device through the hydraulic system or mechanical transmission system. The transmission mechanism drives the cutting tools to rotate at a high speed. The cutting tools cut into the soil, breaking and cutting the soil. As the small skid - steer loader moves forward slowly, the rotating cutting tools continuously operate on the soil in front, thus creating a continuous trench on the ground. During the ditching process, part of the cut soil will be carried out of the trench along with the rotation of the cutting tools and piled on both sides of the trench.

Agricultural Irrigation: Ditching and laying irrigation pipelines in farmland to provide a stable water source for crops. Compared with manual ditching, using a small skid - steer loader equipped with a ditching device can greatly improve work efficiency, shorten the construction period, and the trenches dug are relatively uniform in depth and width, which is conducive to the laying and fixing of pipelines.

Cable Laying: In urban construction or industrial park areas, a large number of cables need to be laid. The ditching device of a small skid - steer loader can quickly dig trenches suitable for cable laying. Then, the cables are placed in the trenches and backfilled. This method can efficiently complete the cable laying work without damaging too much of the ground, reducing the impact on traffic and the surrounding environment.

Drainage Projects: In urban drainage system construction or rural drainage transformation, the ditching device can be used to excavate drainage trenches and lay drainage pipes to divert rainwater or sewage to the designated location. It can adapt to different terrains and soil conditions to ensure the smooth progress of drainage projects.

Efficient Operation: The small skid - steer loader itself has flexible mobility. After being equipped with a ditching device, it can quickly carry out ditching operations in a small space. Its operation efficiency is much higher than that of manual ditching, which can greatly shorten the project cycle and reduce labor costs.

Strong Adaptability: The ditching device can adjust and replace cutting tools according to different soil types and ditching requirements. Whether it is soft sandy soil, clayey soil with high viscosity, or relatively hard clay, good ditching results can be achieved by selecting appropriate cutting tools and adjusting operation parameters. In addition, the small skid - steer loader can travel and operate under various complex terrain conditions, such as slopes, hills, and narrow streets, making the ditching operation not limited by terrain.

Multi - functionality: In addition to installing a ditching device for ditching operations, the small skid - steer loader can quickly replace other working attachments, such as buckets, forks, breaker hammers, etc., to achieve a variety of different operation functions. This enables one device to meet multiple engineering needs, improves the utilization rate of the equipment, and reduces the equipment procurement cost for users.
