How to Use the Mechanical Quick Coupler on a Mini Excavator

How to Use the Mechanical Quick Coupler on a Mini Excavator

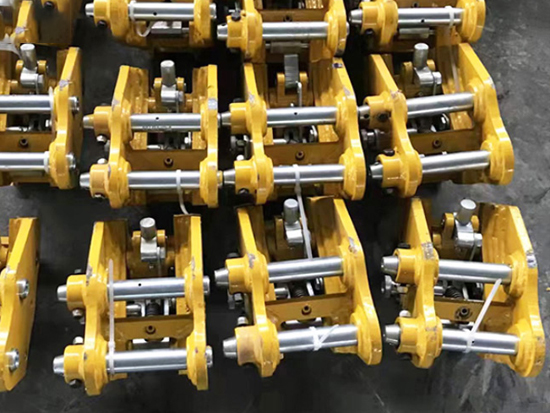

A mechanical quick coupler is an attachment used on mini excavators to quickly change work tools, such as buckets, breakers, or grapples. It simplifies and speeds up the process of swapping tools, increasing work efficiency. Here's how to use a mechanical quick coupler:

1. Installing the Quick Coupler

• Choose the right quick coupler system: Select the appropriate quick coupler system based on your mini excavator model and the type of work you do. Common systems include manual, electric, and hydraulic quick couplers.

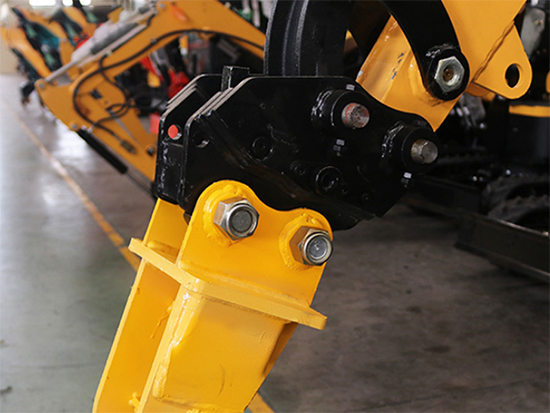

• Mount the quick coupler: Attach the quick coupler to the connection point on the excavator's arm, ensuring it's securely fitted and compatible with your equipment.

2. Attaching and Detaching the Work Tool

• Attaching the tool:

1. Extend the excavator arm to a suitable position.

2. Align the quick coupler with the work tool (e.g., bucket or other attachment).

3. Engage the quick coupler according to the system's instructions. For hydraulic quick couplers, this is usually done by activating the excavator’s hydraulic system.

• Detaching the tool:

1. Adjust the excavator arm or tool to a convenient angle.

2. Unlock or disengage the quick coupler according to the system's design.

3. Manually or hydraulically release the connection between the quick coupler and the work tool.

3. Types of Quick Couplers

• Manual Quick Coupler: Common on non-hydraulic systems, these require manual operation to release and secure attachments.

• Electric Quick Coupler: Uses electric signals to lock and unlock attachments, allowing operators to control the process from the cab.

• Hydraulic Quick Coupler: Common in mini excavators, this system uses hydraulic power to automatically lock and unlock attachments, offering greater efficiency and ease of use.

4. Important Tips for Use

• Check connections for security: Before switching attachments, ensure the quick coupler is securely attached to the work tool to prevent accidental detachment during operation.

• Regular maintenance: Regularly inspect and maintain the quick coupler and hydraulic system to ensure smooth operation and prevent wear and tear.

• Follow safety guidelines: Always adhere to the manufacturer’s instructions and safety protocols when operating the quick coupler to avoid accidents.

By using a mechanical quick coupler, a mini excavator can quickly switch between various attachments, improving productivity, reducing downtime, and adapting to different tasks with ease.
