Skid Steer Backhoe Attachment | 1665mm Depth


  • 1665 mm Digging Depth
  • 0.03 m3 Bucket
  • 123 kg Unit Weight
  • 16 MPa Hydraulics
  • Narrow Trench Bucket

Skid Steer Backhoe Attachment: Dig Without Buying an Excavator

1665 mm Digging Depth | 0.03 m³ Bucket | 123 kg Unit Weight | 16 MPa Hydraulics | Compact 1400 mm Frame

The TOVISEN Backhoe Attachment turns a skid steer attachment carrier into a digging machine. Trenches, footings, and drainage lines on a 1665 mm reach mean contractors who dig occasionally get excavation capability without the cost and storage burden of a dedicated mini excavator.

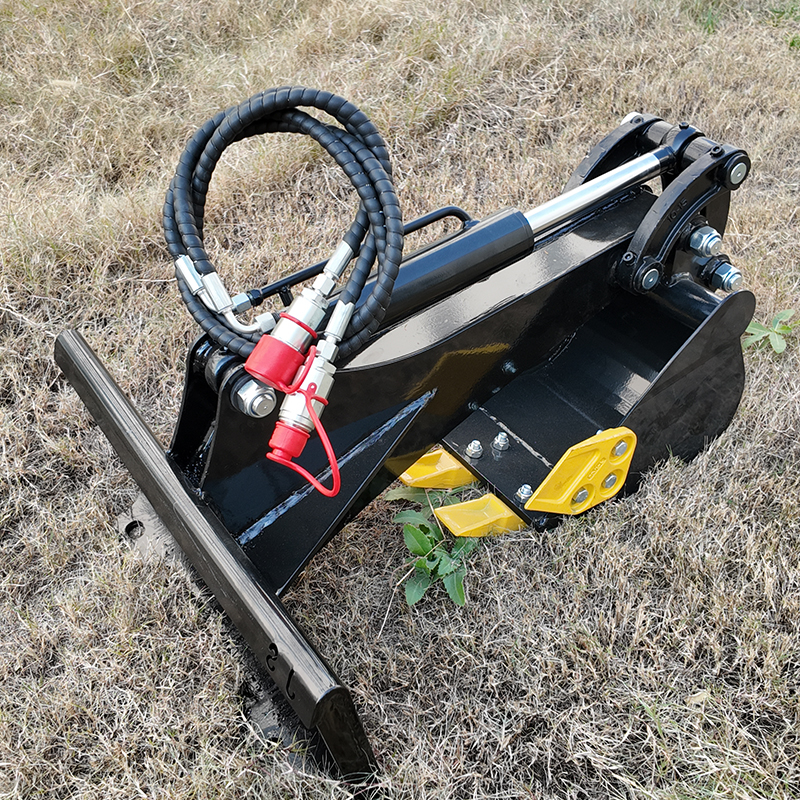

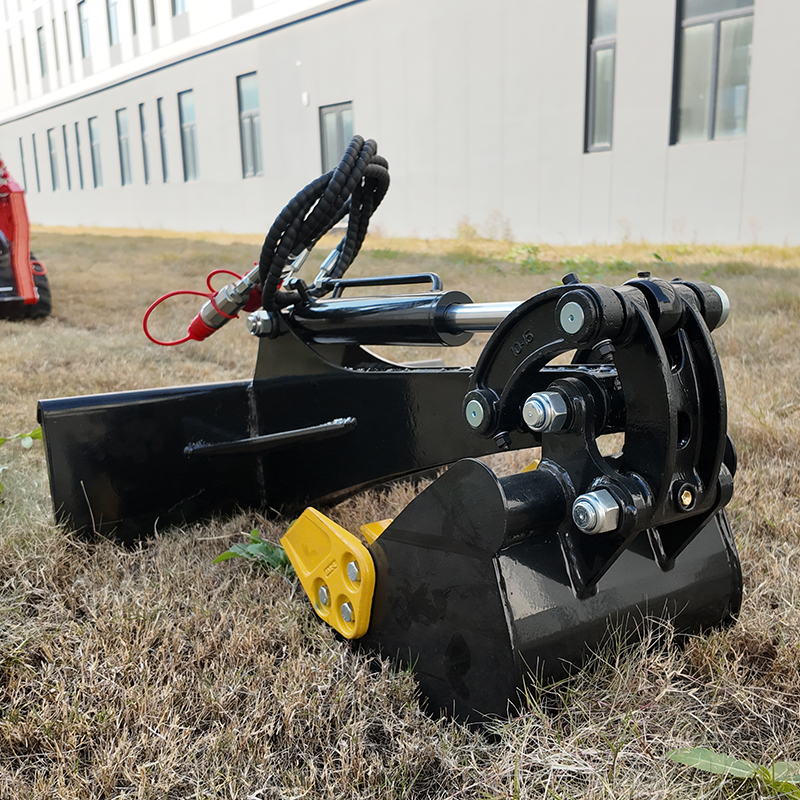

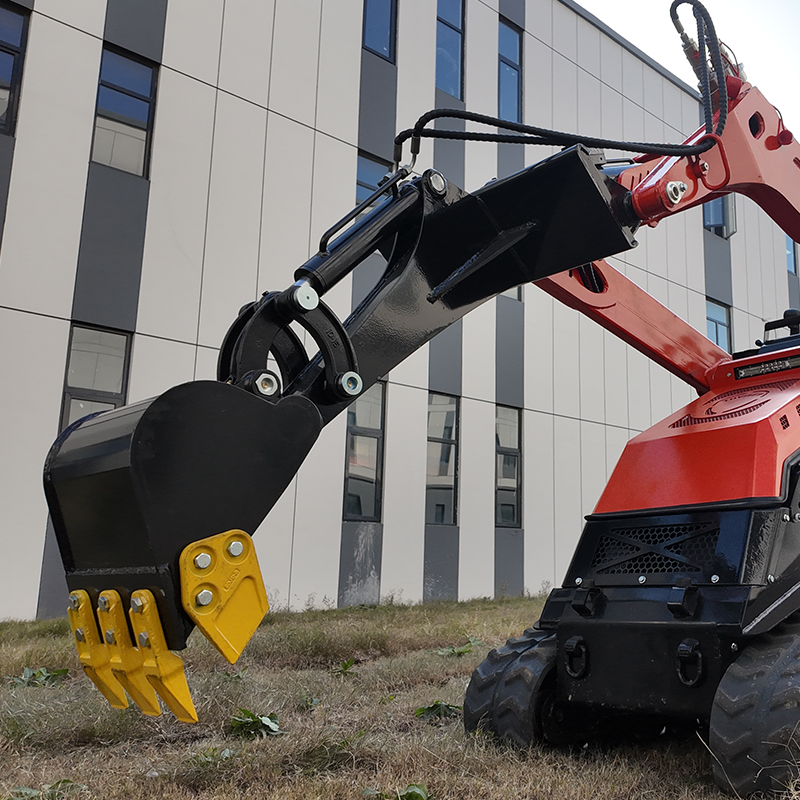

TOVISEN skid steer backhoe attachment with 1665mm digging depth and hydraulic bucket

Key Features

  • 1665 mm Digging Depth Covers the Common Jobs: Water lines, irrigation runs, drainage ditches, and most footing work sit within a 1665 mm reach — the depth range where a backhoe attachment earns its keep instead of a full excavator.

  • 0.03 m³ Narrow Bucket for Straight-Walled Trenches: A narrow cutting width lifts out clean trench walls with minimal surrounding soil disturbance, which is exactly what pipe and conduit installation wants — less backfill, less cleanup.

  • 16 MPa Hydraulics Through Roots and Hard Clay: The boom runs on the loader's own hydraulic circuit at 16 MPa system pressure, with the force to slice through root mats and dig into packed clay rather than stalling on first contact.

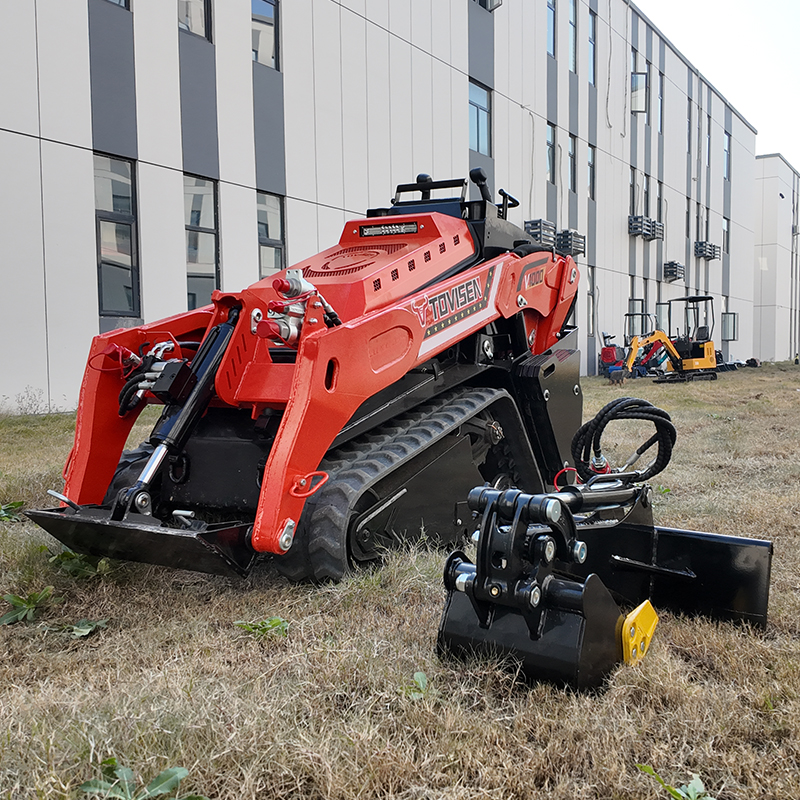

  • 123 kg, 1400 mm Frame: The whole unit weighs 123 kg and measures 1400 × 615 × 620 mm, so it ships as a single piece and mounts on compact skid steer loaders including the TOVISEN skid steer loaders.

  • Built for Uptime, Not the Workshop: Accessible grease points and replaceable bucket teeth mean daily servicing happens on the job site with a grease gun, and worn teeth are swapped instead of sending the arm away for repair.


Professional OEM Customization

As a specialized manufacturer, TOVISEN offers comprehensive OEM & ODM services to adapt this backhoe attachment to your specific market needs:

  • ✅ Bucket Sizing: Multiple bucket widths available for different trench requirements.

  • ✅ Hydraulic Fittings: Custom hose lengths and coupler types to match any loader brand.

  • ✅ Reinforced Teeth: Optional hardened steel teeth for high-abrasion soil conditions.

  • ✅ Fleet Branding: Custom color matching and laser-cut logo services available.

Technical Specifications

Parameter ItemDetailed Specification
Overall Dimensions (L*W*H)1400 × 615 × 620 mm
Max Digging Depth1665 mm
Bucket Capacity0.03 m³
System Pressure16 MPa
Unit Weight123 kg

FAQ

Is 1665 mm digging depth enough for my work?

For water service lines, irrigation systems, drainage ditches, fence post holes, and most footing work, 1665 mm covers the job. If your projects regularly need deeper utility trenches, that is dedicated-excavator territory — the honest answer is this attachment is for occasional and medium-depth digging, not continuous deep excavation.

Backhoe attachment or a dedicated mini excavator?

It comes down to how often you dig. If digging is a occasional part of a job that is mostly loading, clearing, and grading, one loader with this attachment costs far less than adding a second machine — browse the full TOVISEN mini excavator range only if excavation is your daily main work.

Can I get different bucket widths?

Yes. The standard 0.03 m³ narrow bucket is sized for pipe and conduit trenches, and multiple bucket widths are available through OEM customization to match different trench specifications, along with hardened steel teeth for abrasive soil.

Ready to Order Factory-Direct?

Contact TOVISEN today for wholesale pricing, shipping details, and customization options for our backhoe attachments.
