Skid Steer Rotary Tiller | 1000mm, 25 Blades


  • 1000 mm Working Width
  • 60-150 mm Depth
  • 25 Blades
  • 110 kg Unit Weight
  • Hydraulic Motor Drive

Skid Steer Rotary Tiller: Seedbed-Ready Soil in One Pass

1000 mm Working Width | 60–150 mm Adjustable Depth | 25 Blades | 110 kg Unit Weight | Hydraulic Motor Drive

The TOVISEN Rotary Tiller is a soil-preparation skid steer attachment that finishes new ground, old sod, and seedbeds in a single pass: a 1000 mm hydraulic-driven rotor with 25 blades chews down to a 60–150 mm adjustable depth and leaves a fine, plant-ready finish behind your loader.

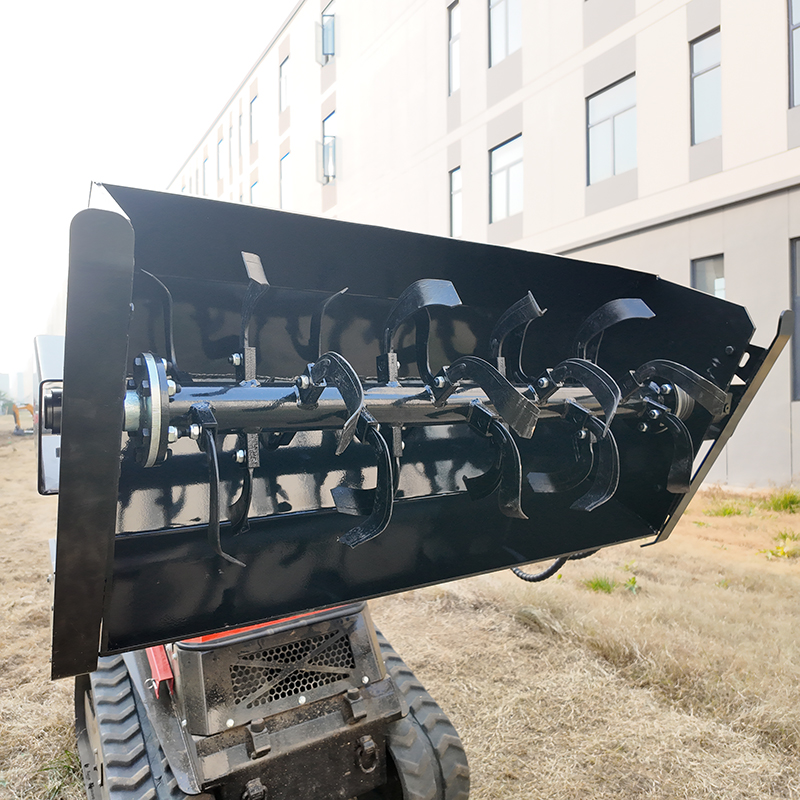

TOVISEN skid steer hydraulic rotary tiller with 25 tilling blades for soil cultivation

Key Features

  • 1000 mm Width, 25 Blades, One Pass: Each pass tills a full metre of ground with 25 blades on the rotor, turning new ground or spent sod into a seedbed directly — no second pass with a harrow, no hand raking behind the machine.

  • 60–150 mm Depth Set Mechanically: Adjustable skid shoes set the working depth before you start, so shallow passes protect tree roots and irrigation lines while full-depth settings cut into compacted ground — no operator guessing, repeatable across the whole crew.

  • Bi-Directional Rotor for Two Soil Modes: Forward rotation throws soil down for a fine finishing cut; reverse rotation under-cuts into hardpan. One attachment covers both finishing seedbeds and breaking new ground, depending on which mode the soil calls for.

  • Sealed Hydraulic Motor Drive: The rotor is driven by a sealed hydraulic motor off the loader's auxiliary circuit — dirt stays out of the drive, service intervals stay long, and there is no chain or gearbox exposed to the soil you are tilling.

  • 110 kg Frame That Absorbs Shock Loads: The reinforced frame handles the shock of high-torque tilling in compacted earth, and OEM blade material upgrades are available for high-abrasion or rocky soils — mount it on the TOVISEN skid steer loaders or any standard coupler machine.


Customizable Cultivation Solutions

As the manufacturer, TOVISEN offers full OEM & ODM customization so the tiller matches your fleet and market:

  • ✅ Width options — multiple sizes to match your loader's horsepower and hydraulic flow.

  • ✅ Blade configuration — custom blade materials for high-abrasion or rocky soils.

  • ✅ Branding — factory-direct logo integration and custom color schemes.

  • ✅ Coupler compatibility — tailored mounting plates for various loader brands.

Technical Specifications

ParameterSpecification
Dimensions (L × W × H)1320 × 600 × 490 mm
Working Width1000 mm
Working Depth60–150 mm, adjustable
Number of Blades25
Unit Weight110 kg
Drive SystemHydraulic motor driven

Pairs Well With

For full-cycle ground work, run the tiller ahead of our land leveler grader to finish grade after tilling, or the vibratory plate compactor when preparing base layers. Not sure which hydraulic attachments your machine can run? Start with our skid steer hydraulic attachments guide.

FAQ

What depth should I set for a new seedbed?

For most seedbeds, 60–100 mm is enough to loosen the root zone and mix in amendments without bringing up subsoil. Use the full 150 mm setting for breaking new, compacted ground or incorporating organic matter deep into the profile. Set depth with the skid shoes, then re-check after the first pass — loose soil tills deeper than the initial cut.

Will this tiller fit my loader?

The tiller runs on a loader's auxiliary hydraulics and mounts to the standard skid steer coupler pattern. For other loader brands or mini-track machines, TOVISEN builds custom mounting plates through our OEM service — send your machine model and coupler photos with the inquiry and we will confirm the fit before quoting.

Can it handle rocky or abrasive soil?

The standard 25-blade rotor covers typical cultivated ground; for high-abrasion or rocky soils, OEM blade material upgrades are available so the teeth resist wear instead of sharpening weekly. The sealed hydraulic drive also keeps grit out of the moving parts, which is where tillers usually fail first in dirty ground.

Ready for Professional Tilling?

Send your loader model, soil conditions, and destination port to TOVISEN for factory-direct wholesale pricing and customization options. Reach us through the contact form on our site.

Get My Free Quote & Design
